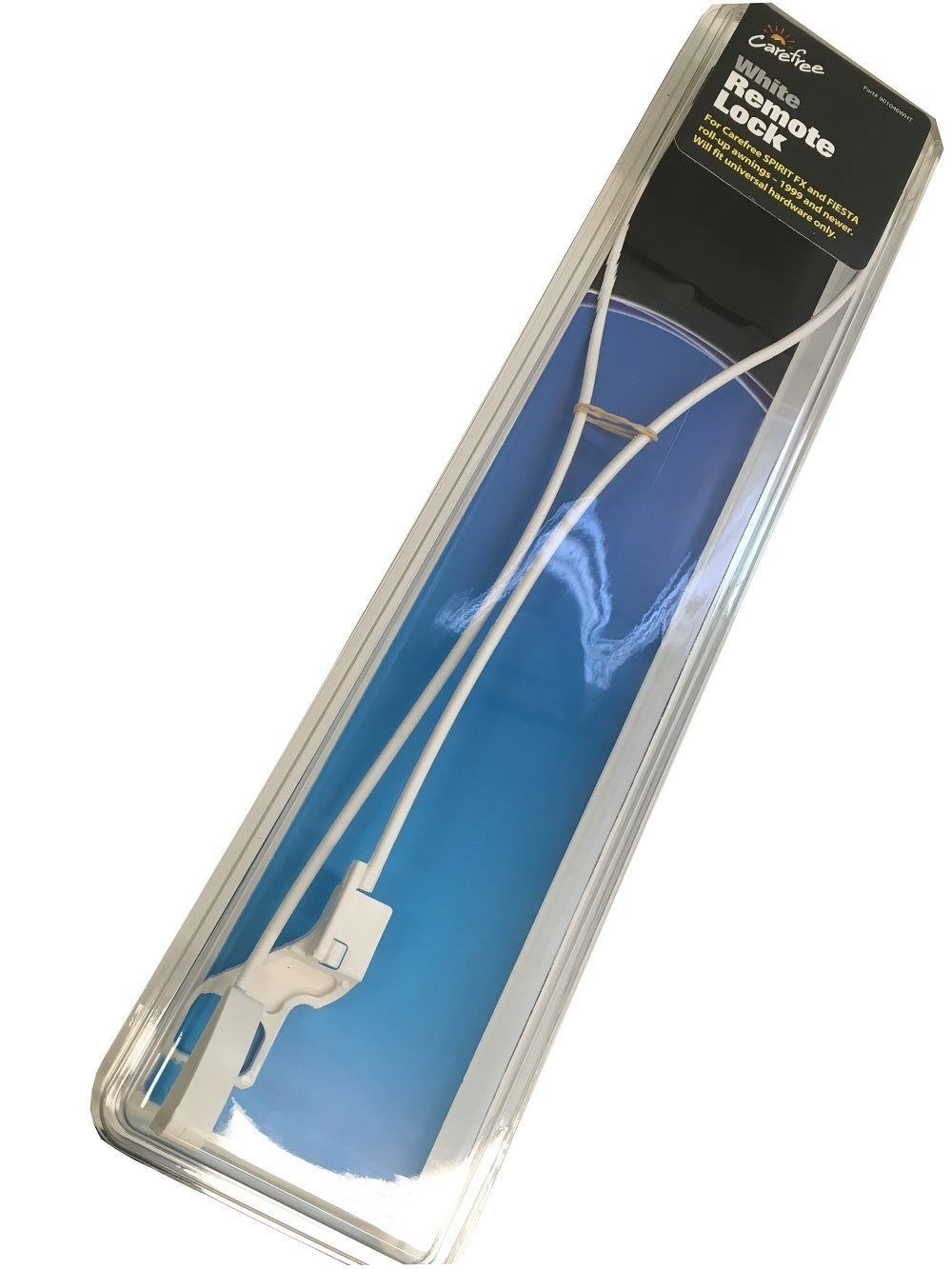

This genuine Carefree Whiteremote lock is designed to suit the standard Carefree Caravan/UniversalHardware used on Carefree Fiesta roll-out awnings. The remote lock slides into the awning arm channel and operates the release mechanism for the awning lock, allowing smooth extension and retraction of your awning.

Please Note: These remote locks measure 978mm in length, which is slightly shorter than some older versions but still fully compatible with all Carefree universal hardware.

Features

Genuine-style remote lock for Carefree Fiesta roll-out awnings

Fits all Carefree Caravan Hardware arms

Operates the awning’s lock-release mechanism

Direct slide-in replacement

Specifications

• Brand: Carefree

• Model / SKU: 200-34214

• Original Model: 901046-MP

• Carefree Part Number: 901046

• Length: 978mm

• Material: High-strength plastic

• Compatibility: Carefree Fiesta Awnings using the Caravan Hardware

• Installation Location: Slides into awning arm extrusion channel

Fitting Instructions

• Fully extend your awning until the arms are locked open.

• Remove the screw holding the arm cap in place — do not bump the ratchet lever.

• Slide the new remote lock down the exposed extrusion channel.

• Refit the cap and secure the screw.

• Carefully slip the top of the remote lock over the ratchet lever.

• For more detail, refer to page 8 of the Carefree Service Manual.

Frequently Asked Questions

Q: Will this remote lock fit my Carefree roll-out awning?
 This remote lock suits all Carefree Caravan/Universal Hardware used on Carefree Fiesta roll-out awnings.

Q: My original remote lock is longer. Will this 978mm version still work?
Yes. Carefree updated the design, and the shorter 978mm version is fully compatible.

Q: How far should the remote lock slide into the arm?
Slide it all the way down until it reaches the grub-screw location at the bottom of the arm.
This is what holds it in place.

Q: How do I know if I have Carefree Universal Hardware?
You have the correct hardware if:

• Your awning is a Carefree Fiesta

• The remote lock slides into a vertical channel inside the awning arm

• There is a small screw at the bottom of the arm securing the old lock

• Your existing lock looks like a long plastic strip

If your hardware is not Carefree, the part will not fit.

Q: Will this fit both caravan (tall) hardware and pop-top hardware?
Yes , as long as the arm uses Carefree’s universal extrusion groove, this remote lock will fit.

It is traditionally for the Caravan arms but will also fit the Pop-Top arms.
