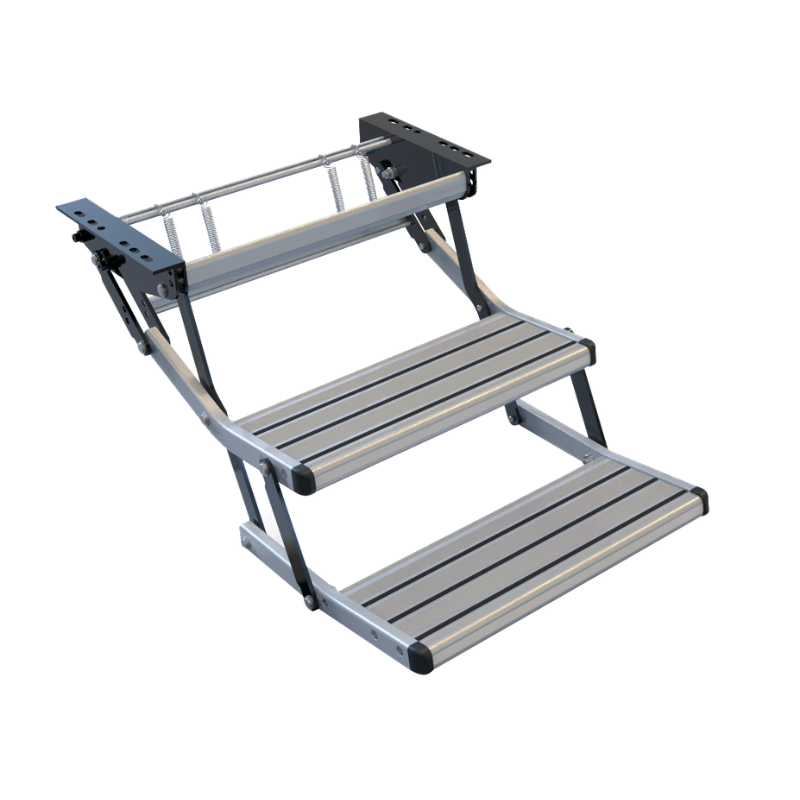

Take a step in the right direction with the Coast RV Double Pull-Out Step.Designed for strength, stability and smooth operation. Perfect for caravans, motorhomes and RVs with higher door entry points, this heavy-duty aluminium step provides a safer, more comfortable two-step access solution.

Features:

• Double pull-out design for higher entry heights
• Heavy-duty aluminium construction
• Corrosion resistant – ideal for Australian conditions
• Smooth sliding mechanism
• Compact fold-away design
• Suitable for caravans and motorhomes
• Lightweight but strong construction

Specifications:

Overall Width: 545mm
Step Configuration: Double pull-out
Material: Aluminium
Application: Caravan / RV entry step
Mounting: Underbody / chassis mount (hardware not included)

Overall Width: 545mm
Extended Projection: Approx. 550mm
Closed Projection: Approx. 300mm
Overall Drop (Mounting surface to lowest tread): Approx. 440mm
Individual Tread Depth: Approx. 200mm per step
Tread Width: Approx. 545mm
Mounting Height Requirement: Refer to diagram before purchase

Instlation Informtaion:

• Mounting hardware is NOT included
• Must be secured to a structural chassis support
• Do not mount to unsupported flooring
• Professional installation recommended if unsure
• Ensure adequate clearance when retracted

Before purchasing, check:

• Available mounting width (545mm required)
• Drop height from doorway to ground
• Under-van clearance when retracted
• Extension clearance when deployed
• Structural mounting points

You can check the PDF  under the downloads and support tab for additional sizing.

FAQ

Q: What is the total drop from mounting surface?
 Approximately 440mm from mounting surface to lowest tread

Q: Does it lock in place when closed?
 Yes, when correctly installed the slide system holds the step securely in the closed position.

Q: Does it come with bolts?
No, mounting hardware is not supplied.

Q: What is the overall width?
545mm total width.
