Designed to assist with raising and lowering trailers with ease, utilising electronic controls for smooth and efficient operation. It is suitable for trailers of various chassis sizes and is equipped with a bracket to suit a multitude of installation scenarios  and its full 360° mounting capabilities allow for near endless mounting possibilities.

Why Gator Jack?

Effortless Lifting: Power at your fingertips

Precision Levelling: Stability with a push of a button

Reliable Backup: Ready for any situation, day or night

Features:

• Heavy Duty Lift: Lifts up to 1800 kg, perfect for the heaviest trailers
• Precision Levelling: Built-in level for perfect levelling every time
• Easy Operation: 12V DC power with LED night light for dark conditions
• Emergency Backup: Equipped with a Manual Crank Handle for Reliable Operation During Power Failures or Unexpected Situations
• Extended Lift Range
  Provides approximately 700mm of total lift when combining the drop leg adjustment with the electric extension.

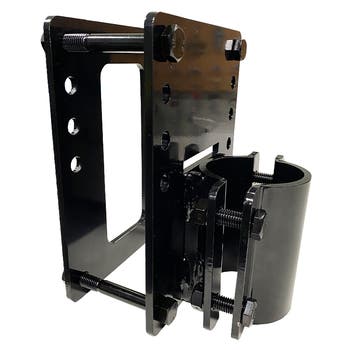

• Gator Jack Clamp 60mm: Innovative & Versatile, Securely Bolts to Any Chassis with Ease, Suits 3/4/5/6” Drawbars
•  360 deg swivel wheel available (sold seperatly see sku 450-10040)
• Pre wired Anderson plug on a 1.3m lead

Specifications:

• Max Load: 1800 kg
• Total Lift Height: Approx. 700mm (combined drop leg and electric extension)
  Electric Stroke: Approx. 345mm (±10mm manufacturing tolerance)
• Foot Plate: 133mm
• Handle: Manual Crank Override (supplied)
• Construction: Steel and polypropylene
• Outer Finish: Powder Coated outer Tube
• Inner Finish: Zinc Plated
• Voltage Rating: 12V DC
• Overall Dimensions: (H) 781mm x (W) 216mm x (D)140mm
• Current Rating: 28amps Extending, 6amps Retracting
• IP Rating: IP 55
• Approvals: RMC and RCM
• Gas Code Compliance: AS/NZS 5601.2.2020
• Weight: 13 kg
• Warranty: 12 Months
• Mounting Bracket Dimensions: 190 x 150mm
• Mounting Bracket Bolts: M10 x 120mm

Frequently Asked Questions

Q: What does the Gator Jack do?
The Gator is a 12V electric trailer jack that makes raising and lowering your trailer effortless with the push of a button. It’s designed for chassis sizes from 3" to 6" and offers 360° mounting flexibility.

Q: How much can it lift?
 It can lift up to 1800 kg,

Q: What power is required to run the Gator Jack?
The unit runs on 12V DC and includes a pre-wired Anderson plug with a 1.3m lead.

Q: Can I still operate it if there’s no power?
Yes, It includes a manual crank handle for full operation in case of power failure.

Q: What are the power draw specs?

• Extending: 28 amps

• Retracting: 6 amps

Q: Is installation difficult?
Installation is straightforward:

• Fits 3–6" chassis rails

• Heavy-duty 60mm clamp included – designed for strength and stability

• Clamp and all mounting hardware (bolts, nuts, washers) are included

Q: What size clamp does the Gator Jack require?
The Gator Jack is designed to work with a 60mm-wide mounting clamp, which is included in the kit.

Q: What’s the warranty period?
The Gator Jack is backed by a 12-month warranty from Coast to Coast RV.

Q: How does the 700mm lift range work?
The jack achieves approximately 700mm of total lift by combining the manual drop leg and the electric extension. The inner drop leg can be lowered approximately 356mm from its highest position, and the electric motor then extends the jack a further approximately 345mm (±10mm). Together this provides the full lift range required for easy hitching and unhitching.
