The Coast RV Steel Chassis Mount Battery Box is designed as a direct-fit upgrade for Jayco caravans built mid–late 2021 and definitively from 2022 onwards that were factory-fitted with a welded-on chassis battery bracket.

This upgraded steel battery box allows owners to remove the smaller original factory box and install a larger unit capable of housing higher-capacity batteries while still using the existing factory welded bracket.

Important Information:

This box will only accept batteries within the base size limits below.
Please measure your battery base before purchasing.

Internal Maximum Space:

• Width: 416 mm
• Depth: 238 mm
• Height: 314 mm

Maximum Battery Base Size:

• Width: 371 mm
• Depth: 202 mm

Minimum Battery Base Size:

• Width: 371 mm
• Depth: 186 mm

If your battery base exceeds these measurements, it will not fit.

Features:

• Heavy-duty steel construction
• Direct replacement for Jayco welded bracket setup
• Designed for larger capacity battery upgrades
• Compatible with single or double chassis bracket setups
• Secure hook-and-bolt mounting system

Options For Caravans Without Faactory Fitted Bracekts:

For caravans without a factory welded bracket, compatible brackets are available separately:

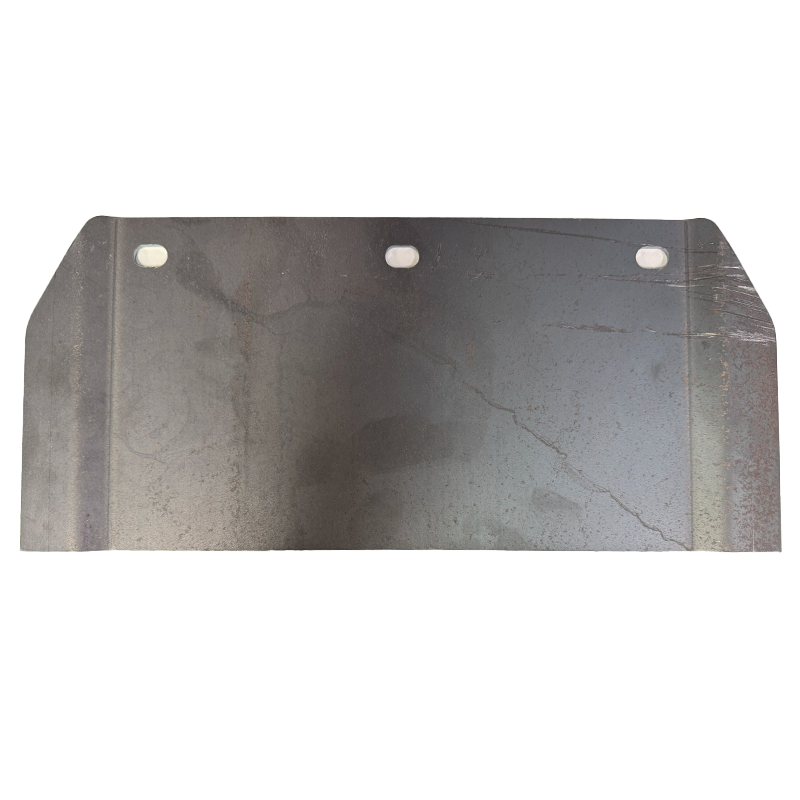

• Single Bracket – SKU 500-02026

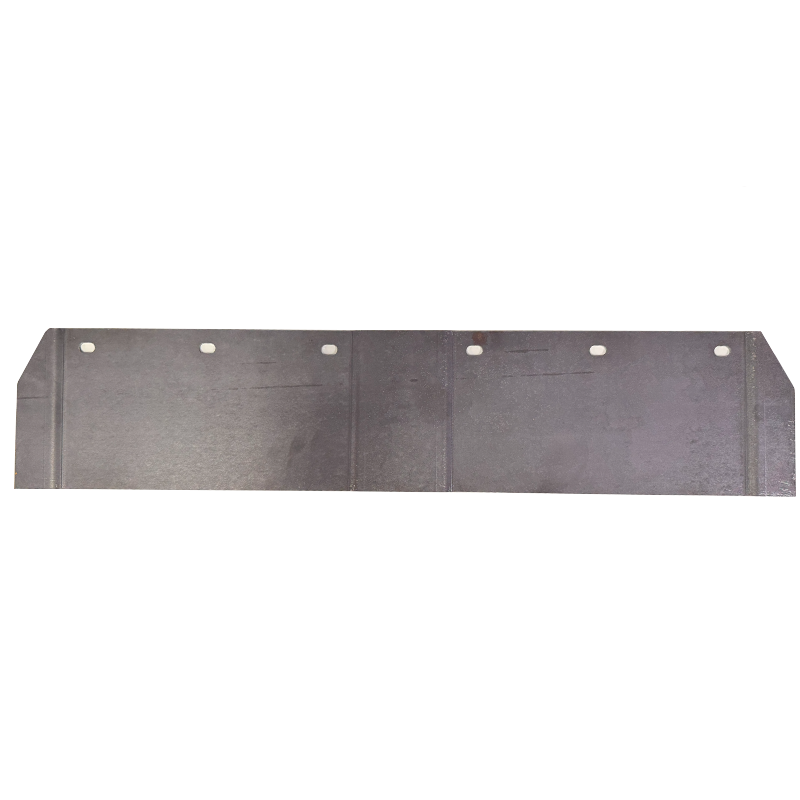

• Double Bracket – SKU 500-02028

 Brackets must be welded to the chassis prior to installation.

Bracket Instilation process

1. Weld bracket to chassis (if not factory fitted).
2. Hook battery box over welded bracket.
3. Secure using M8 nuts and bolts (not supplied).

Specifications:

• Brand: Coast RV
• Product Type: Steel chassis mount battery box
• Material: Steel
• Internal Dimensions: 416 mm (W) x 238 mm (D) x 314 mm (H)
• Maximum Battery Base Size: 371 mm (W) x 202 mm (D)
• Minimum Battery Base Size: 371 mm (W) x 186 mm (D)
• Mounting Method: Hooks over welded chassis bracket
• Fixings Required: M8 nuts and bolts (not supplied)
• Weight: 9.5KG

FAQ

Q: Will this fit the Renogy Mini 12V 300Ah Lithium LiFePO4 Battery shown in the video?
Yes, the Renogy Mini 12V 300Ah Lithium LiFePO4 Battery will fit the Coast RV battery mount box. The Renogy 300Ah battery has a smaller base footprint than its overall width, and the Coast battery box was purposely designed to suit this battery, allowing it to fit correctly as shown in the video.

Q: Will this fit my Jayco caravan?
It suits Jayco caravans built mid–late 2021 and 2022 onwards that have the factory welded battery bracket.

Q: Can I install two battery boxes?
Yes. If your van has a double welded bracket, two boxes can be mounted side by side.

Q: Are mounting bolts included?
No. M8 nuts and bolts are required but not supplied.

Q: Can this be installed without welding?
No. If your van does not have the welded bracket, a compatible bracket must be welded to the chassis first.

Q: Will this fit any lithium battery?
Only if the battery base dimensions fall within the listed minimum and maximum base measurements.
