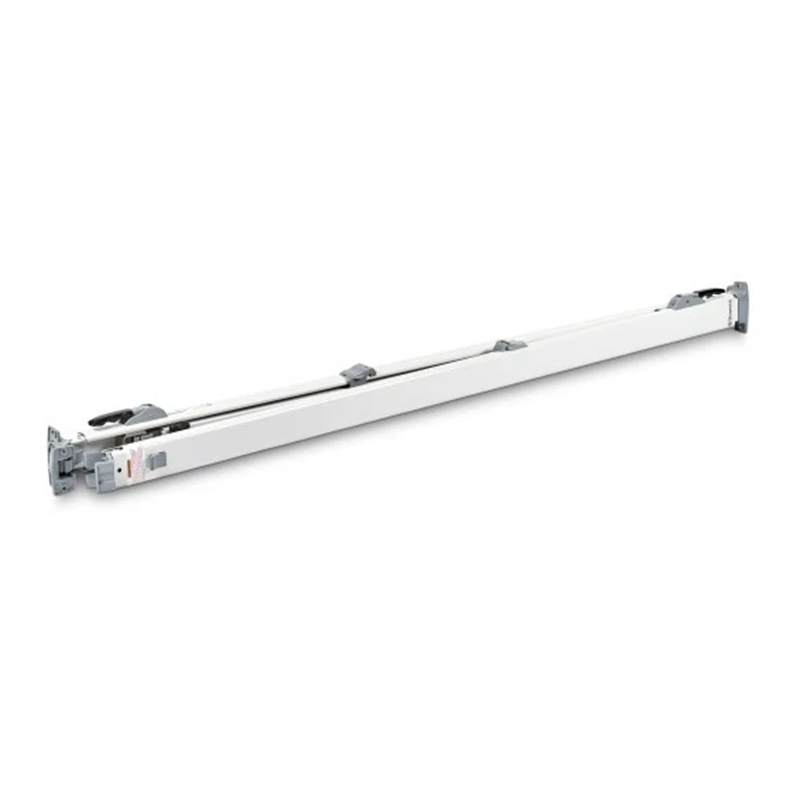

The Dometic 8700 Standard Hardware Kit is purpose-built for performance in harsh Australian conditions. Designed as a universal awning hardware kit, it suits Dometic 8700 awnings and can also be used with existing 8300, 8500 & 9000 awning barrels.

Important Information: Flat wall installation only.

Key Features:

• Standard height hardware kit (previously known as “Short”)
• Heavy-duty powder-coated aluminium construction
• Cast aluminium safety latches
• Soft grip lift handles
• Five-star locking knobs for improved grip
• Designed for harsh Australian conditions
• Compatible with 8700 awnings
• Can be used with existing 8300, 8500 & 9000 awning barrels
• Universal replacement hardware kit
• white powder-coated finish

Wall Height and Sizing Information:

There are three sizes of 8700 hardware available. Always install the largest size that suits your caravan wall height.

Ultra Short:
Minimum wall height required – 1475 mm

Standard (This Kit):
Minimum wall height required – 1620 mm

Tall:
Minimum wall height required – 1925 mm

ARE You Replacing Existing Hardware ?

To determine your current hardware size, measure the Main Arm length:

• Ultra Short Main Arm – 1350 mm
• Standard (This Kit) – 1550 mm
• Tall – 1855 mm

If your existing main arm measures approximately 1550 mm, this listing is the correct replacement size.

Specifications:

Brand: Dometic
Model: 878HS-WHT
Part Number: 9600027146
Finish: White Powder Coated
Installation Type: Flat wall only
Minimum Wall Height Required: 1620 mm
Compatibility: 8700 Awnings / 8300, 8500 & 9000 Barrels
Replaces Previous Models: 8483004.402U / 8271003.402U

Individual Component  Dimensions:

SMain Arm Length: 1550 mm
Inner Arm Length: 1450 mm
Main Rafter Length: 1370 mm
Secondary Rafter Length: 1130 mm

FAQ

Q: Is This for both the Right and Left hand (complete kit) ?

Yes, this is for both.

Q: Can i buy an individual  Left or Right hand?

No, this is only sold as a complete kit.

Q: Will this suit my Dometic 8300 or 8500 awning barrel?
Yes. This hardware kit is compatible with existing 8300, 8500 and 9000 awning barrels.

Q: How do I know if I need Standard size?
Measure your existing main arm. If it measures approximately 1550 mm, this is the correct size. Also ensure your caravan wall height is at least 1620 mm.

Q: Can this be installed on a curved wall?
No. This hardware kit is designed for flat wall installations only.

Are the wall bracekts, bottom foot bracket and screws included?

Yes, This is a complete kit.
