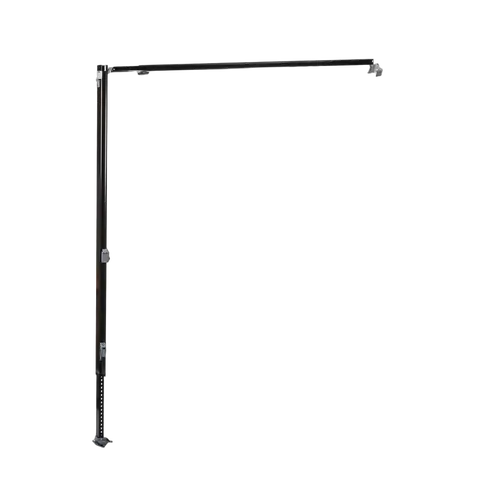

Designed as a universal awning hardware kit, it suits Dometic 8700 awnings and can also be used with existing 8300, 8500 & 9000 awning barrels.

Important Information: Flat wall installation only.

Features:

Tall height hardware kit
• Heavy-duty powder-coated aluminium construction
• Cast aluminium safety latches
• Soft grip lift handles
• Five-star locking knobs for improved grip
• Designed for harsh Australian conditions
• Compatible with 8700 awnings
• Can be used with existing 8300, 8500 & 9000 awning barrels
• Universal replacement hardware kit
• Black powder-coated finish

Wall Height And Sizing Information:

There are three sizes of 8700 hardware available. Always install the largest size that suits your caravan wall height.

Ultra Short:
Minimum wall height required – 1475 mm

Standard (Previously Short):
Minimum wall height required – 1620 mm

Tall (This Kit):
Minimum wall height required – 1925 mm

Replacing Existing Hardware?

To determine your current hardware size, measure your Main Arm length:

• Ultra Short Main Arm – 1350 mm
• Standard Main Arm – 1550 mm
• Tall Main Arm – 1855 mm

If your existing main arm measures approximately 1855 mm, this is the correct Tall replacement.

Specifications:

Brand: Dometic
Model: 878HT-BK
Part Number: 9600027144
Finish: BlackPowder Coated
Installation Type: Flat wall only
Minimum Wall Height Required: 1925 mm
Compatibility: 8700 Awnings / 8300, 8500 & 9000 Barrels
Replaces Previous Models: 8483004.401B / 8271003.401B

Individual Component Sizing:

Main Arm Length: 1855 mm
Inner Arm Length: 1450 mm
Main Rafter Length: 1678 mm
Secondary Rafter Length: 826 mm

FAQ

Q: Is This for both the Right and Left hand (complete kit) ?

Yes, this is for both.

Q: Can i buy an individual  Left or Right hand?

No, this is only sold as a complete kit.

Q: Will this suit my Dometic 8300 or 8500 awning barrel?
Yes. This hardware kit is compatible with existing 8300, 8500 and 9000 awning barrels.

Q: Can this be installed on a curved wall?
No. This hardware kit is designed for flat wall installations only.

Are the wall bracekts, bottom foot bracket and screws included?

Yes, This is a complete kit.

Q: How do I know if I need the Tall size?
Measure your existing main arm. If it measures approximately 1855 mm, this is the correct size. Also ensure your caravan wall height is at least 1925 mm.
