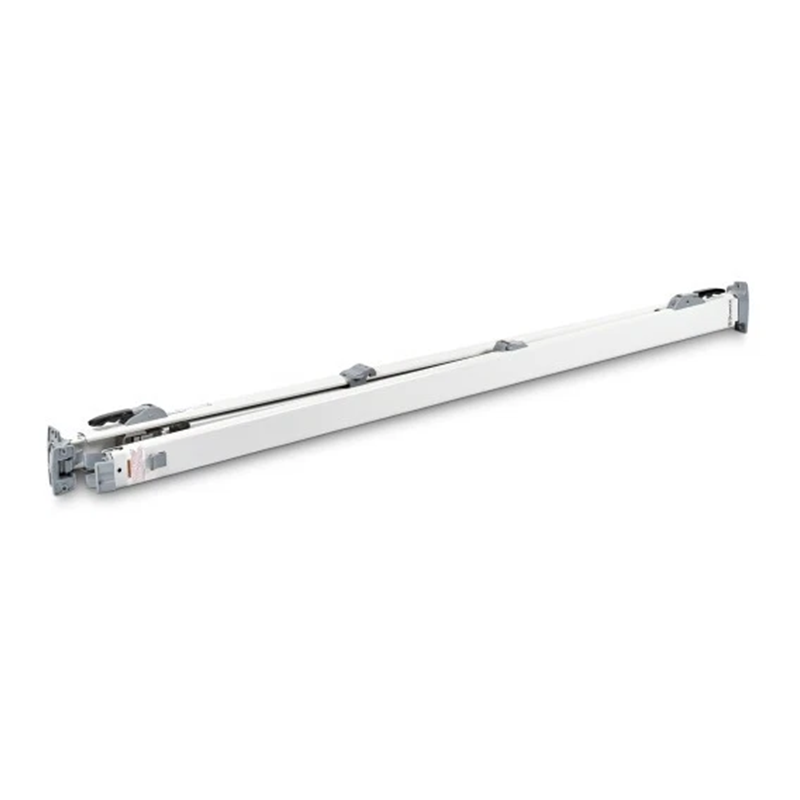

Designed as a universal awning hardware kit, it suits Dometic 8700 awnings and can also be used with existing 8300, 8500 & 9000 awning barrels.

Important Information: Flat wall installation only.

Features:

Ultra-short hardware kit
• Heavy-duty powder-coated aluminium construction
• Cast aluminium safety latches
• Soft grip lift handles
• Five-star locking knobs for improved grip
• Designed for harsh Australian conditions
• Compatible with 8700 awnings
• Can be used with existing 8300, 8500 & 9000 awning barrels
• Universal replacement hardware kit
• White powder-coated finish

Wall Height And Sizing Information:

There are three sizes of 8700 hardware available. Always install the largest size that suits your caravan wall height.

Ultra Short (This Kit) :
Minimum wall height required – 1475 mm

Standard (Previously Short):
Minimum wall height required – 1620 mm

Tall :
Minimum wall height required – 1925 mm

Replacing Existing Hardware?

To determine your current hardware size, measure your Main Arm length:

• Ultra Short Main Arm – 1350 mm
• Standard Main Arm – 1550 mm
• Tall Main Arm – 1855 mm

If your existing main arm measures approximately 1350 mm, this is the correct replacement.

Specifications:

Brand: Dometic
Model: 878HU-WH
Part Number: 9600028576
Finish: White Powder Coated
Installation Type: Flat wall only
Minimum Wall Height Required: 1475 mm
Compatibility: 8700 Awnings / 8300, 8500 & 9000 Barrels
Replaces Previous Models: 8483004.401B / 8271003.401B

FAQ

Q: Is This for both the Right and Left hand (complete kit) ?

Yes, this is for both.

Q: Can i buy an individual  Left or Right hand?

No, this is only sold as a complete kit.

Q: Will this suit my Dometic 8300 or 8500 awning barrel?
Yes. This hardware kit is compatible with existing 8300, 8500 and 9000 awning barrels.

Q: Can this be installed on a curved wall?
No. This hardware kit is designed for flat wall installations only.

Are the wall bracekts, bottom foot bracket and screws included?

Yes, This is a complete kit.
