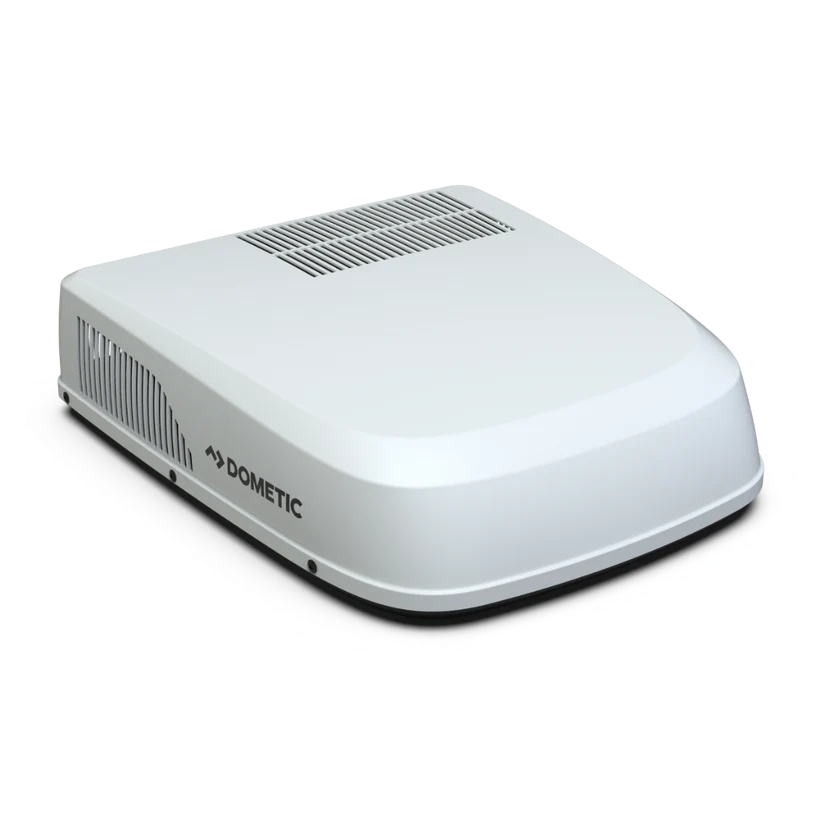

Enjoy a cooler caravan on hot days and comfortable warmth when the temperature drops, without sacrificing unnecessary roof space. The Dometic IBIS Core 3000 combines 3.0 kW cooling capacity, inverter technology and a compact rooftop footprint, giving you more flexibility when planning around solar panels, roof vents and other accessories.

With a combined rooftop unit and air distribution box weight of less than 35 kg, this package provides heating and cooling in a low-profile design. Compatibility with 360 × 360 mm and 400 × 400 mm roof openings also makes it an option for replacing an existing rooftop air conditioner, subject to roof strength, clearances and installation requirements.

Features:

• 3.0 kW cooling performance: Enjoy a more comfortable interior during warm-weather travel.
• Heating and cooling: One rooftop unit for comfort across changing seasons.
• Inverter technology: Adjusts compressor operation to suit demand, supporting efficient operation and reduced noise.
• Compact, lightweight design: Helps preserve roof space, with a combined unit and ADB weight below 35 kg.
• Two roof opening sizes: Suitable for 360 × 360 mm and 400 × 400 mm installations.
• Bluetooth connectivity: Built-in Bluetooth capability.

Specifications:

• Brand: Dometic
• Model: IBIS Core 3000
• Package reference: 9630002370+9630000078(IB)
• Rooftop unit part number: 9630002370
• Core ADB part number: 9630000078
• Product type: Rooftop air conditioner with internal air distribution box
• Cooling capacity: 3000 W / 3.0 kW
• Heating capacity: 2200 W / 2.2 kW*
• Power supply: 220–240 V AC
• Supply frequency: 50–60 Hz
• Rated cooling current: Less than 6.8 A
• Maximum cooling current: Less than 7.5 A
• Rated heating current: Less than 5.1 A
• Maximum heating current: Less than 7.5 A
• Required fuse: 10 A
• Operating temperature range: −2°C to 52°C
• Compressor technology: Inverter
• Connectivity: Bluetooth
• Cabin airflow: Recirculates interior air
• Rooftop protection rating: IPX5
• Refrigerant: R32
• Refrigerant quantity: 420 g
• Global warming potential: 675
• CO₂ equivalent: 0.287 tonnes
• Combined net weight, rooftop unit and ADB: Less than 35 kg
• Warranty: 3 years

Dimensions & Installation Measurements:

• Rooftop unit: 805 mm long × 722 mm wide
• Rooftop height shown in supplied drawing: 225 mm*
• Internal ADB: 579 mm long × 518 mm wide
• ADB projection below ceiling: 48 mm
• Roof opening options: 360 × 360 mm or 400 × 400 mm
• Roof thickness range shown in supplied drawing: 25–60 mm

Heating capacity and rooftop height require confirmation due to differences in the supplied product information.

FAQ

Q: Does this package include the internal ceiling unit?
Yes. This package includes the Core air distribution box, also called the ADB. It is the internal ceiling component that distributes conditioned air into the living area.

Q: Will it fit my existing roof opening?
The unit supports 360 × 360 mm and 400 × 400 mm roof openings. Measure the actual roof cut-out rather than the outside dimensions of your existing ceiling panel. Your installer must also check roof thickness, roof strength, mounting requirements and surrounding clearances.

Q: Can it replace an older IBIS or another brand of air conditioner?
It may suit a replacement installation where the opening and roof construction meet its requirements. A matching cut-out size alone does not guarantee a direct swap. The rooftop footprint, internal ADB coverage, electrical connection and mounting arrangement must also be checked.

Q: How much room does it need inside the caravan?
The supplied drawing shows an ADB measuring 579 × 518 mm, projecting 48 mm below the ceiling. Check clearance around cupboard doors, lights and other ceiling fittings. For replacement installations, also check whether it will cover marks or screw holes left by the previous ceiling assembly.
