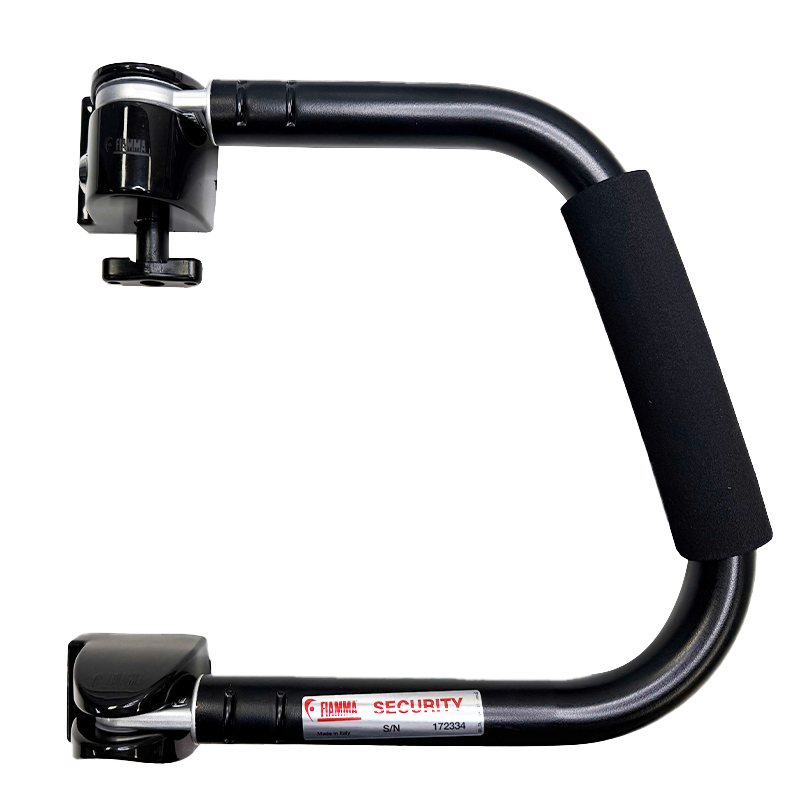

The Fiamma Handle Security 31 (03513-01) is a dual-purpose security handle designed for caravan and motorhome main doors. It acts as both a solid grab handle for safe entry and exit and a locking security bar when folded across the door. Made from strong, anodised aluminium, the Handle Security 31 adds protection against forced entry while offering a convenient support handle when open.

OEM Part Number: 03513-01
Type: Security handle and door grab bar
Colour / Finish: Black powder-coated aluminium
Material: Anodised aluminium with reinforced brackets
Included: Handle assembly, mounting brackets, lock barrel with keys, internal fixing plates, and hardware

Features:

• 2-in-1 design: Works as both a locking security bar and entry grab handle

• Strong construction: Made from high-quality anodised aluminium

• Weather-resistant: Powder-coated white finish withstands UV and corrosion

• Lockable security: Folds across the door and locks with a keyed barrel (2 keys included)

• Comfort grip: Ergonomic 30 mm round tube for easy handling

Specifications:

• Overall Height: 31 cm (310 mm)

• Handle Tube Diameter: 30 mm round aluminium tube

• Overall Width (in open / grab-handle position): 33.5 cm (335 mm)

• Wall Projection (when folded and locked across the door): 65 mm

• Bracket Centre-to-Centre Distance: 210 mm (vertically between mounting brackets)

• Bracket Bolt Hole Spacing (each bracket): 50 mm between fixing holes

• Total Bolt-to-Bolt Distance (top bracket to bottom bracket): 265 mm

Frequently Asked Questions

Q: What does the Fiamma Handle Security 31 do?
It provides added door security by locking across your caravan or motorhome door and also acts as a grab handle for safe entry and exit.

Q: What vehicles is it suitable for?
It’s designed for caravans and motorhomes

Q: What’s included in the box?

• Handle Security 31 unit

• Mounting brackets and internal backing plates

• Fixing screws

• Integrated lock barrel with 2 keys

Q: Can it be installed on either side of the door?
Yes. It can be mounted for left or right-hand opening doors.
