FLARED BALL VALVE 5/16" x 5/16" SAE. 1210025

FLARED BALL VALVE 5/16" x 5/16" SAE. 1210025

Gas Equipment

Be the first to review this product
SKU 550-00648
Flared ball valve 5/16” x 5/16” SAE.

In stock

$25.30
$22.54

Details

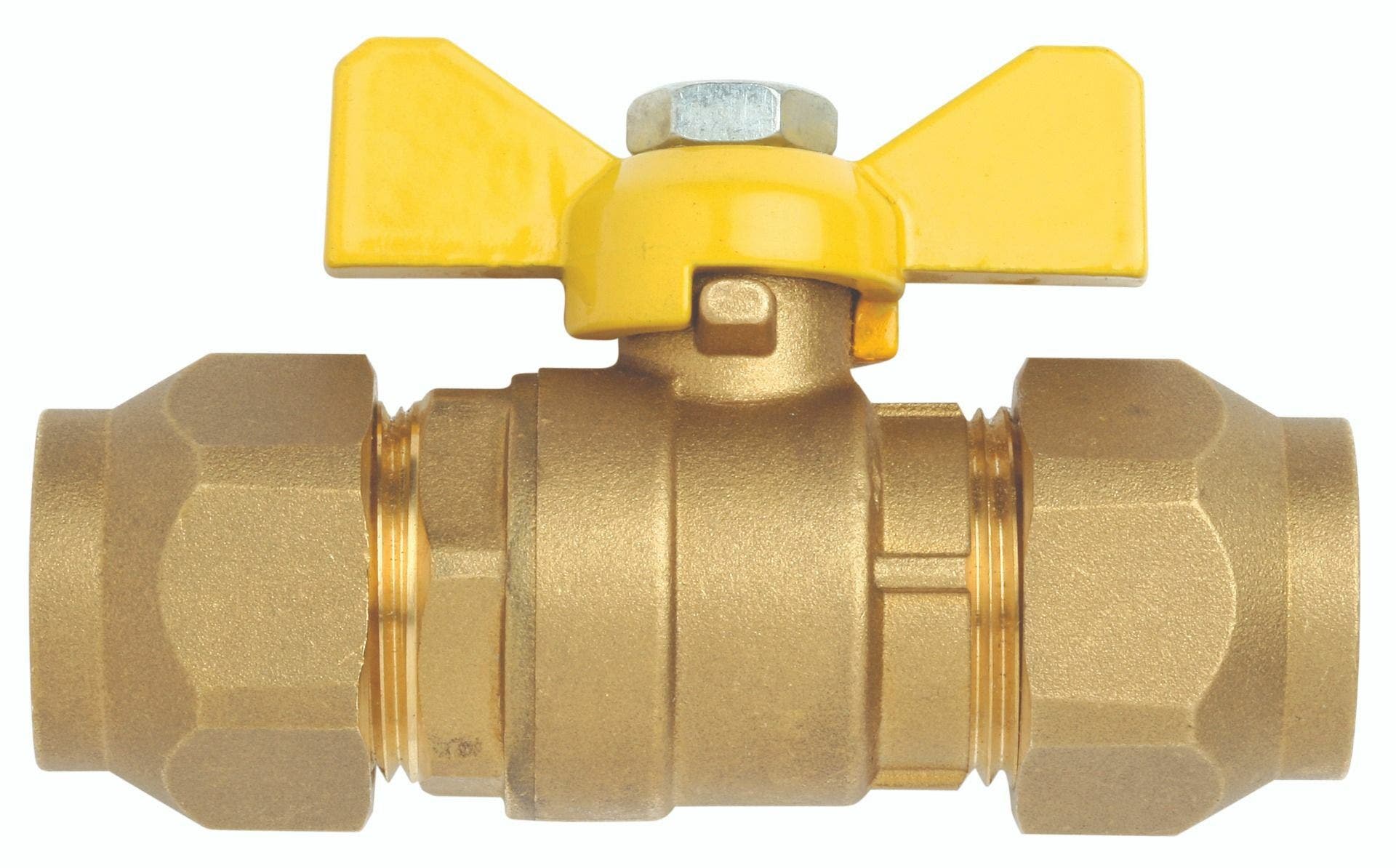

Flared ball valve 5/16” x 5/16” SAE, complete with flare nuts.

Bromic’s range of gas flare x flare ball valves are manufactured with high quality brass and feature a P.T.F.E. stem sealing system, providing extensive durability with a maximum operating pressure of 1050kPa at nominal temperatures.

  • High quality brass construction with conical P.T.F.E stem sealing system
  • Working temperature range between -20C and +120C
  • Maximum operating pressure at nominal temperatures of 1050kPa
  • Suitable for use with vacuum
  • 100% pressure tested
  • Approved by the Australian Gas Association for use with natural gas and LPG
  • Used for kitchen and backyard applications





For use with

LPG (Propane), NG





Material

Brass

Pressure Rating (kPa)

1050

Handle Type

Butterfly

Inlet Connection

5/16" SAE

Working Temp. Range (°C)

-20°C to 120°C

AGA Approval

Yes

AGA Approval No.

7423

Dimension A (mm)

39

Dimension B (mm)

57

Dimension L (mm)

63
