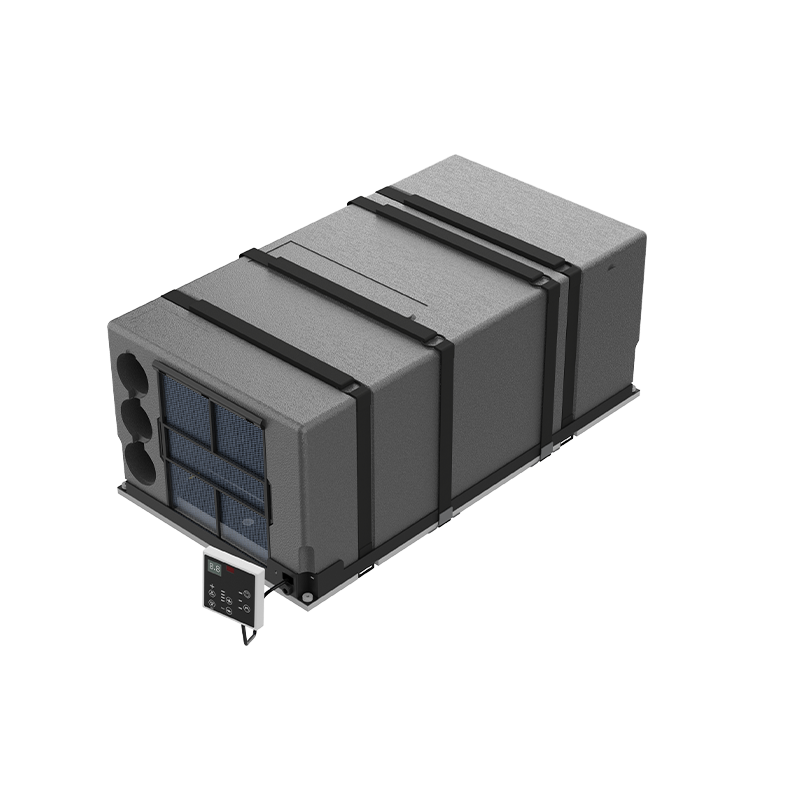

The Furrion 9000 BTU Under Bunk Air Conditioner (FACB09HM) is a powerful yet compact climate control solution designed specifically for caravans, motorhomes and RVs. With a 2.6kW cooling capacity and reverse cycle heating, it keeps your van comfortable in both hot Australian summers and chilly winter nights.

Unlike bulky rooftop units, this system installs neatly under a bunk, bed, bench or cabinet, freeing up valuable roof space for solar panels and reducing overall vehicle height. It distributes air through internal ducting and vents.

The unit includes three internal air vents, a wired wall control pad, and a remote control (stored under the top flap on arrival) so you can easily manage temperature and airflow anywhere in your van.

Features:

Reverse cycle heating and cooling

9000 BTU / 2.6kW cooling capacity

Under-bunk / under-bench installation

Auto mode adjusts output based on room temperature

Fan only mode for air circulation

Dehumidification mode to reduce humidity

Timer on/off function

Sleep mode for quiet overnight operation

Remote control included

Wired wall-mounted control pad included

Supplied with 3 internal air vents

Specifications:

Brand: Furrion

Model: FACB09HM

Cooling Capacity: 2637W (2.6kW)

Heating Capacity: 2784W

Input Voltage: 220–240V AC / 50Hz

Cooling Power Consumption: approx. 1000W

Heating Power Consumption: approx. 800W

Input Current: 4.2A nominal

Locked Rotor Current: 22.5A

Maximum Airflow: up to 490 m³/h

Refrigerant: R410A

Refrigerant Charge: approx. 500–620g

Protection Rating: IPX5

Operating Temperature Range: -7°C to +43°C

Fan Speeds: 3 speed levels

Product Dimensions: 398mm (W) x 296mm (H) x 734mm (D)

Weight: approx. 27–27.8kg

Maximum Recommended Coach Size: approx. 30m³ interior volume

Important Information:

• Unit must be mounted level (maximum tilt 10°)
• Requires 220–240V AC power supply
• Minimum recommended breaker: 10A
• Pedestal supply recommended: 16A
• Requires floor ventilation openings for airflow

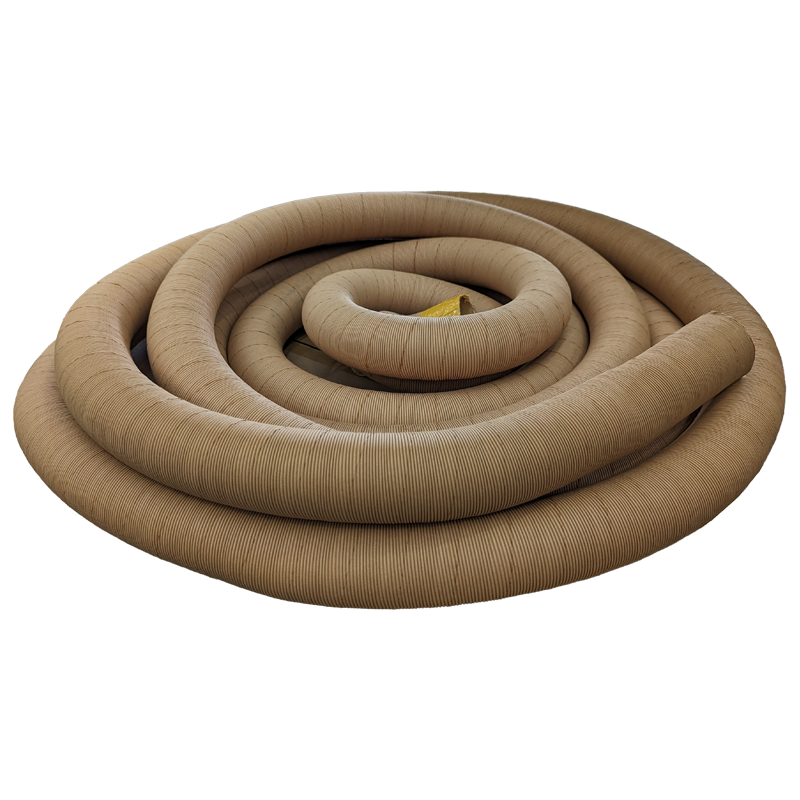

• Ducting is NOT included and must be purchased separately
• Recommended ducting diameter: 60mm
• Duct runs should be kept short and straight for best airflow
• Professional installation recommended

FAQ

Q: Does the unit come with a remote control?
Yes. The remote control is included and stored under the flap on top of the unit.

Q: What operating modes are available?
The unit includes Cooling, Heating, Fan-only, Dehumidification, Auto mode, Sleep mode and Timer operation.

Q: What size caravan is this suitable for?
It is designed for RV spaces up to approximately 30 cubic metres of interior volume.

Q: Is ducting included with the unit?
No. Ducting must be purchased separately.

Q: What power supply does the unit require?
It runs on 220–240V AC / 50Hz and typically draws around 1000W in cooling mode.

Q: Does the unit need ventilation underneath the van?
Yes. Floor openings are required for airflow and condensation drainage during installation.
