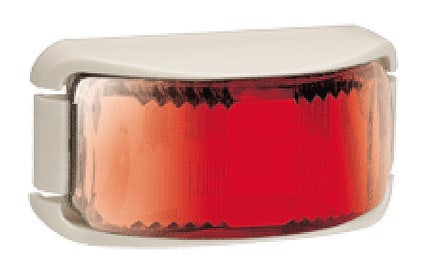

The Narva 91632W LED Rear End Outline Marker Lamp is a high-visibility, compact rear marker designed to clearly define the rear outer edges of caravans, trailers, motorhomes, and commercial vehicles. Featuring a red LED lens with a white base, this lamp is commonly used as a rear outline or clearance marker, improving vehicle visibility and ensuring on-road compliance.

Built for modern electrical systems, this lamp operates across a wide 9–33V DC voltage range, making it suitable for both 12V and 24V vehicles. With ultra-low power draw, long-life LEDs, and high ingress protection, it delivers reliable performance in harsh road and weather conditions.

Features:

• Rear end outline / clearance marker lamp

• Red LED lens with white base

• Wide voltage operation: 9–33V DC (12V & 24V compatible)

• Ultra-low current draw

• Long-life LEDs rated up to 100,000 hours

• High visibility output

• Fully sealed for external vehicle use

Specifications:

• Brand: Narva

• Model / Part Number: 91632W

• Lamp Type: Rear end outline marker lamp

• Lens Colour: Red

• Base Colour: White

• Voltage Range: 9–33V DC

• Current Draw: 0.02 A

• LED Life Rating: Up to 100,000 hours

• IP Rating: IP66 & IP68 (dustproof and waterproof)

• Candela Rating: 46 cd

• Overall Size: 74 mm × 38 mm

• ADR Compliance:

  • Vertical: ADR 49/00 – 30945

  • Horizontal: ADR 49/00 – 30946

• Comprises: 91630; 91688
