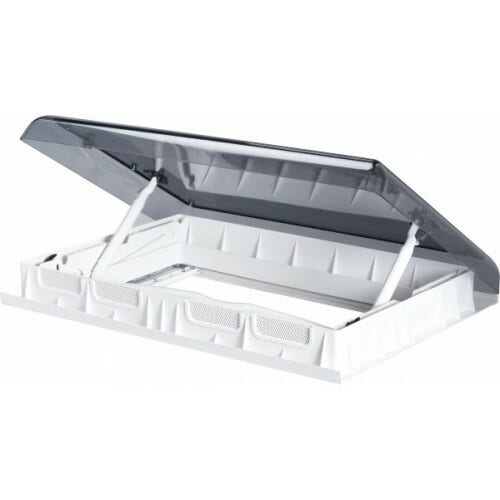

Bring natural light and fresh air into your caravan or motorhome with the MAXXAIR SKYMAXX LX Skylight. Open the lid for ventilation while parked, slide the insect screen across the opening, or draw the internal blind when you want shade and privacy.

The manually operated lid has selectable opening positions, allowing you to adjust ventilation to suit your comfort. Designed for a 700 × 500 mm roof opening and 42–60 mm roof thickness, this model combines a rooflight, insect screen and internal blind in one assembly.

Features:

• Natural light and ventilation: Brightens your interior and allows fresh air through the open rooflight.

• Integrated blind and insect screen: Adjust the balance of shade and screened ventilation.

• Selectable opening positions: Position the lid using the handle and retaining slots.

• Manual operation: Operate the lid, blind and screen without an electrical connection.

• Positive closing latch: The handle locks into place when the rooflight is fully closed.

Specifications:

Brand: MAXXAIR

Range: SKYMAXX LX

Part number: 00-97000iA

Product type: Manually operated rooflight / skylight

Required roof opening: 700 × 500 mm

Minimum roof thickness: 42 mm

Maximum roof thickness: 60 mm

Lid operation: Manual handle with release button

Opening adjustment: Selectable positions using retaining slots

Internal blind: Included, manually operated

Insect screen: Included, manually operated

Integrated LED lighting: Not included on this LX model

Electrical supply: Not required for this model

Installation orientation: Hinged side facing the front of the vehicle

Travel position: Lid fully closed and latch

Whats Included:

• SKYMAXX LX rooflight assembly

• Interior ceiling flange and trim assembly

• Integrated internal blind and insect screen

• Mounting screw hardware pack

Compatability:

Suits installations with a 700 × 500 mm roof cut-out and 42–60 mm roof thickness, subject to suitable roof construction and clearance.

FAQ

Q: Is 700 × 500 mm the roof opening or the overall skylight size?
It is the required roof opening size. It is not the overall external flange or internal trim measurement. Remove the existing interior trim to measure the actual opening before ordering.

Q: Does “42/60 mm” mean it only fits a 42 mm or 60 mm roof?
No. It identifies the supported roof thickness range: 42 mm minimum to 60 mm maximum. The mounting screw length must be selected to suit the measured thickness.

Q: How do I measure my roof thickness?
Measure the complete roof section at the opening, from the exterior roof surface to the interior ceiling surface. The manual instructs installers to check thickness at the mounting holes and, on curved roofs, measure the thickest section. Do not measure the old skylight trim or lid.

Q: Does this model have LED lights or require 12 V power?
This is the standard SKYMAXX LX model, without integrated LED lighting. The lid, screen and blind operate manually. The electrical instructions in the shared manual apply to the LX Plus illuminated versions.

Q: Does it have a powered extraction fan?
No. Ventilation is provided through the rooflight opening.

Q: Can the skylight stay open while travelling?
No. The manufacturer requires the rooflight to be closed before the caravan is moved or transported.
