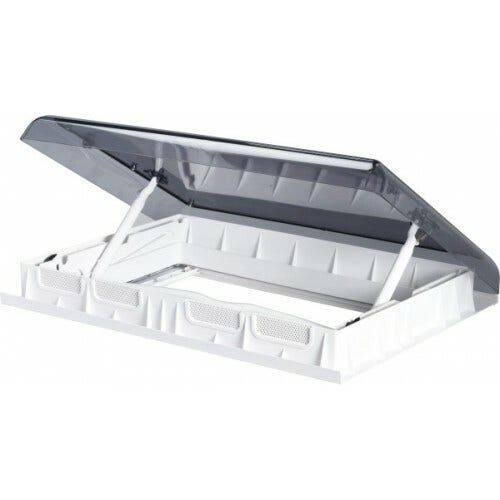

Enjoy natural light during the day and integrated LED lighting after dark with the MAXXAIR SKYMAXX LX Plus. Open the skylight for fresh air while parked, position the insect screen across the opening, or draw the internal blind for shade and privacy.

Designed for a 700 × 500 mm roof opening and 42–60 mm roof thickness, this model combines a manually operated rooflight, blind, insect screen and 12 V LED lighting. The lid opens to selectable positions, while the lighting operates through a separately supplied wall control.

Features:

• Integrated LED lighting: Adds interior illumination when daylight fades.

• Internal blind and insect screen: Adjust shade, privacy and screened ventilation.

• Selectable lid positions: Control the opening using the manual handle and retaining slots.

• Manual rooflight operation: Open and close the lid, blind and screen without electrical power.

• Adjustable passive ventilation: Supplied screen and blank inserts allow the vent configuration to be changed to suit the installation.

Specifications:

Brand: MAXXAIR

Model: SKYMAXX LX Plus

Part number: 00-97010iA

Product type: Rooflight with internal blind, insect screen and LED lighting

Required roof cut-out: 700 × 500 mm

Minimum roof thickness: 42 mm

Maximum roof thickness: 60 mm

Lid operation: Manual handle with release button

Opening positions: Selectable using retaining slots

Blind operation: Manual

Insect screen operation: Manual

Lighting: Integrated LED

LED supply voltage: 12 V DC

Minimum supply capacity required: 2 A

Electrical circuit: Fused, with appropriately sized stranded wiring

Lighting control: Wall control, supplied by the installer

Installation orientation: Hinged side facing the front of the vehicle

Travel position: Fully closed and latched

Additional  Instialtion Requirements:

• Fused 12 V DC supply and suitable wiring

• Sealing products compatible with the plastic flange and roof surface

• Suitable LED wall control, Not included

Compatability:

Suits a 700 × 500 mm roof opening with a 42–60 mm roof thickness, subject to suitable roof construction and clearances.

Faq

Q: Is 700 × 500 mm the cut-out size or the overall skylight size?
It is the required roof cut-out size. It does not describe the overall exterior flange or interior trim. Remove the existing ceiling trim and measure the actual opening before ordering.

Q: Does “42/60 mm” mean it fits only two roof thicknesses?
No. This model suits a roof thickness range of 42–60 mm. The mounting screws must be selected to suit the measured roof thickness, following the manual.

Q: How do I check my roof thickness?
Measure the roof section between the exterior roof surface and interior ceiling at the opening. The manual instructs installers to check thickness at the mounting holes and use the thickest section when measuring a curved roof.

Q: What is the difference between SKYMAXX LX and LX Plus?
The LX Plus includes integrated LED lighting. Both models have a manually operated lid, internal blind and insect screen. The Plus requires a suitable 12 V supply and separate wall control for its lighting.

Q: Is the LED light switch included?
No. The manual specifically states that the wall control must be provided by the installer

Q: What power supply do the LEDs require?
The manual specifies a 12 V DC supply capable of providing at least 2 A. The circuit must be fused and use appropriately sized stranded wiring. The 2 A figure is the required supply capacity; it is not stated as the LEDs’ measured operating current.

Q: Can I still open the skylight if the battery is flat?
Yes. The lid, blind and insect screen are manually operated. A loss of electrical power affects the LED lighting, not the manual opening and closing functions.

Q: Does it include a powered ventilation fan?
No. It provides ventilation through the rooflight opening and its vent inserts.
