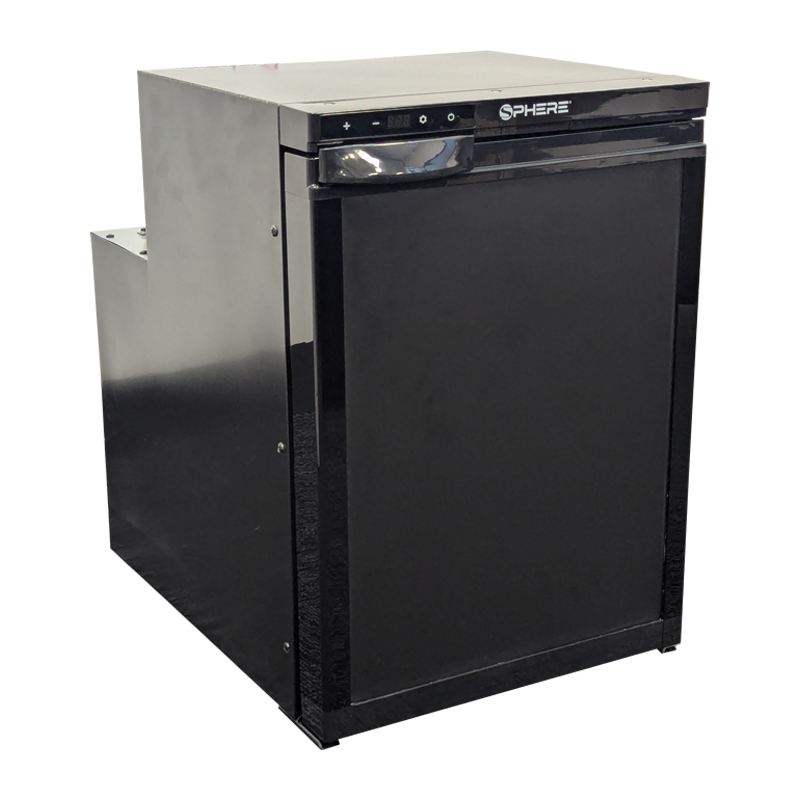

The Sphere UCF44 is the ideal compact DC compressor fridge for caravans, campervans, and RVs where space is tight but performance still matters. Despite its smaller footprint, this 44-litre unit packs powerful cooling performance. keeping your meals and drinks perfectly chilled wherever you go.

With intelligent battery protection, fast cooling, and an efficient compressor, it’s designed for off-grid comfort and reliability.

Key Features

High-efficiency DC compressor: Delivers excellent cooling with minimal power consumption.
CFC-free insulation: Environmentally friendly and energy-efficient.
Fast cooling performance: Reaches as low as –20°C (based on 25°C ambient temperature).
Three-stage battery protection system: Prevents vehicle battery discharge.
Dual-zone flexibility: Fridge and freezer compartments with independent control.
Reversible door: Change from left- or right-hand opening for flexible installations.
LED digital control panel: Simple and precise temperature adjustment.
Compact and lightweight: Ideal for smaller caravans, vans, and 4WD setups.
Quiet operation: Under 45dB
Genuine Sphere product: Built tough for Australian touring conditions.

Specifcations

Model: UCF44
Voltage: DC 12/24V
Power Draw: 60W
Capacity: 43.8L (Fridge: 9.7L / Freezer: 34.1L)
Temperature Range: Fridge 0–8°C / Freezer –12 to –20°C
Noise Level: <45dB
Dimensions (W x H x D): 380 × 535 × 530 mm (including handle and drain spout)
Weight: 16.9kg
Warranty: 2 Years

Q: Can it run on both 12V and 24V systems?
Yes. The UCF44 connects directly to your 12V or 24V DC system and includes automatic voltage detection.

Q: How much power does the Sphere UCF44 draw?
In a real-world test at 32°C ambient temperature, with the fridge set to 5°C and the freezer at –13°C, both compartments 50% loaded (bottles of water), the UCF44 consumed 64.83 amp-hours over 24 hours once stable.
That equals an average draw of approximately 2.7 amps per hour,

Q: Can it operate as both a fridge and a freezer?
Yes. It features two compartments with adjustable temperature control, allowing you to use one as a fridge and the other as a freezer.

Q: How noisy is the UCF44?
It runs at under 45 decibels

Q: What are the exact dimensions?
Width: 380mm (±2mm)
Height: 535mm (±2mm, including feet)
Depth: 530mm (±2mm, includes rear drain spout and front handle protrusion).

Q: What’s included?
The fridge unit, 12/24V DC power cable, and user manual

Q: Is the door reversible?
Yes. The door can be mounted to open from either side, making installation flexible.
