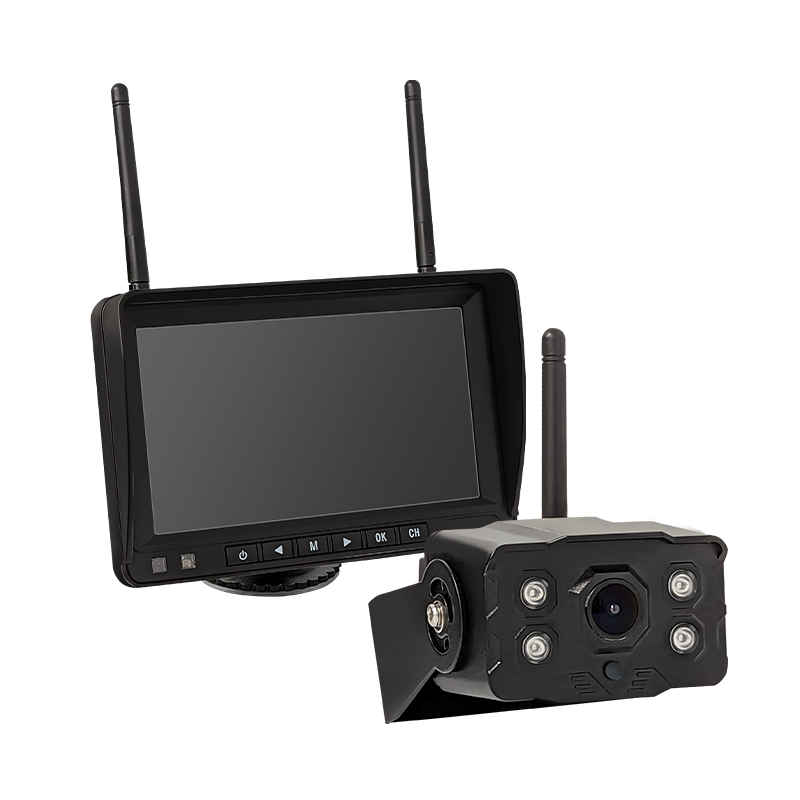

Introducing the Sphere wireless reversing camera range, designed to make your RV reversing experience safer and more convenient than ever before. Featuring a 7-inch digital wireless monitor, this camera system provides a crystal-clear view of your surroundings in real-time, giving you the confidence to navigate any tight spot or challenging driving situation.

The integrated DVR function means you can now record your trips by simply inserting an SD card into the monitor. This feature ensures that you never miss a moment and helps you keep track of any incidents or accidents that may occur while your on the road.

The Sphere Wireless Reversing Camera system supports up to four cameras, allowing you to install multiple cameras on your RV. This feature ensures that you can always see what's happening around your vehicle and avoid any potential collisions. Additionally, the system offers multiple viewing options, including single, split-screen, and quad viewing options. This flexibility allows you to customize your view and select the best option for your specific driving needs.

Wireless Monitor Specifications:

• 7-inch digital wireless monitor
• DVR function – Insert an SD card into the monitor and it will record the image from the paired cameras
• Supports up to 4 cameras
• Multiple Viewing Options - Single/Split Screen/Quad
• Operating frequency: 2400-2483.5MHZ
• Transmitted Power:18db
• Resolution: 1280 (H) X 1024 (V)
• Power Supply: DC12-36V
• Power consumption: <500mA
• Operating temperature: -20 ° C ~ 70° C
• Storage temperature: -30 ° C ~ 80° C

Wireless Camera Specifications

• View Angle: 127° [H] 170° [D]
• Waterproof Rating: IP69
• Minimum illumination: 0.5lux
• Power Supply: DC12V-36V
• Operating frequency: 2400-2483.5MHZ
• Operating Temperature -20 ° C ~ + 70° C / RH 95%Max
• Storage Temperature -30° C ~ + 80° C / RH 95% Max
• Overall monitor dimensions: 180mm x 120mm x 45mm
• Overall camera dimensions: 75mm x 45mm x 60mm

Whats in the Kit

• Colour CCD Weatherproof Wireless Backup Camera
• Wireless Antenna
• 7" Wireless Colour LCD Monitor
• Car cigarette lighter Power Cable
• Sunshade
• Universal Mount With Adhesive Pad
• Butterfly Bracket
• Camera Power cable
• Screw Kit for Camera Installation
