The Tow Secure TS2000 Break-Away Kit is a mandatory safety system for trailers over 2,000 kg GTM that use electric brakes. It utilises your caravan’s 12 V battery as the power source, eliminating the need for a dedicated internal battery, and includes a Tekonsha-brand break-away switch to trigger the system if separation occurs. This kit monitors the break-away battery, provides wireless dashboard alerts, and ensures the trailer’s brakes and stop lights activate automatically if the caravan detaches from the tow vehicle.

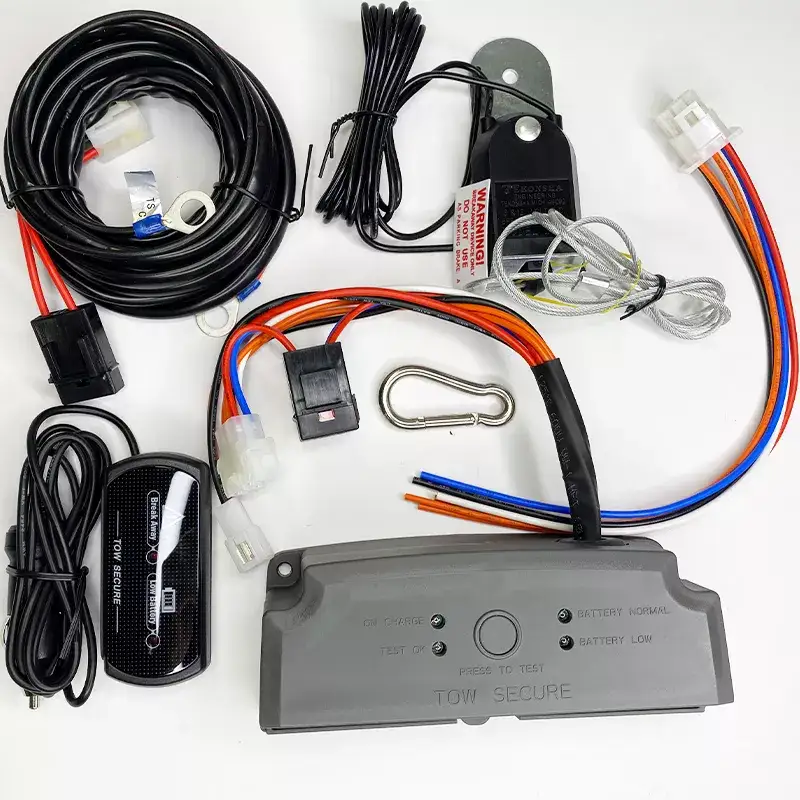

Kit Includes:

• 1 × TS2000 control module

• 1 × 5 metre wiring harness (connects to caravan 12 V battery)

• 1 × Wireless receiver (for tow-vehicle dash mounting)

• 1 × Tekonsha break-away switch with stainless steel cable

• Mounting hardware and quick-guide instructions

Specifcations:

• Operating Voltage: 12 V DC (supplied by caravan battery) Harness Length: 5 m wiring harness included

• Power Draw: No standby power drain when system is armed and vehicle is off

• Control Module Dimensions: approx 177 mm (W) × 80 mm (H) × 53 mm (D)

• Wireless Monitor: Compatible with dash display monitor (sold separately) to show battery/kit status

Compatability:

Designed for trailers or caravans equipped with electric braking systems and GTM over 2,000 kg.

Intended for installations where you prefer to use the vehicle’s battery rather than a separate break-away battery.

Suitable for single-vehicle or multi-vehicle tow setups—the control module can pair with multiple wireless receivers for different tow vehicles.

Features:

• Automatic activation: If trailer detaches, the system instantly applies the brakes and illuminates the stop-lights.

• Compact design: No internal battery required—uses the caravan battery, allowing reduced size and fewer maintenance needs.

• Self-test capability: System tests itself each time the tow vehicle engine starts and monitors battery condition during travel.

• Wireless monitoring option: Keep track of the break-away system via a dashboard receiver—ideal for multi-vehicle tow setups.

• Legal compliance: Helps satisfy legal requirements for break-away systems on heavy trailers in many Australian jurisdictions.

• Installation-friendly: Pre-wired harness and switch make installation straightforward in most caravan/trailer-with-electric-brakes setups.

Frequently Asked Questions

Q: What is a break-away system and why do I need it?
A break-away system automatically activates the trailer’s brakes if it becomes detached from the towing vehicle, reducing risk of uncontrolled runaway. Many Australian states require it for trailers over 2,000 kg GTM that use electric brakes.

Q: Will this kit draw power from my caravan’s battery when parked or off-road?
No. The TS2000 is designed to draw no power while on standby when the vehicle engine is off.

Q: Does my trailer need a separate break-away battery?
Not for this model. The TS2000 uses your caravan/trailer’s existing 12 V battery as the energy source, eliminating the need for a dedicated break-away battery.

Q: What if I use more than one tow vehicle with the same trailer?
The control module can be paired with multiple wireless receivers (in each tow vehicle) so each driver can monitor the system from their cab.

Q: What happens if the indicator shows a fault while driving?
Stop towing as soon as safely possible. The wireless receiver will alert you via LED and audible signal if the system detects low battery voltage or a fault condition. Address the issue before continuing.
