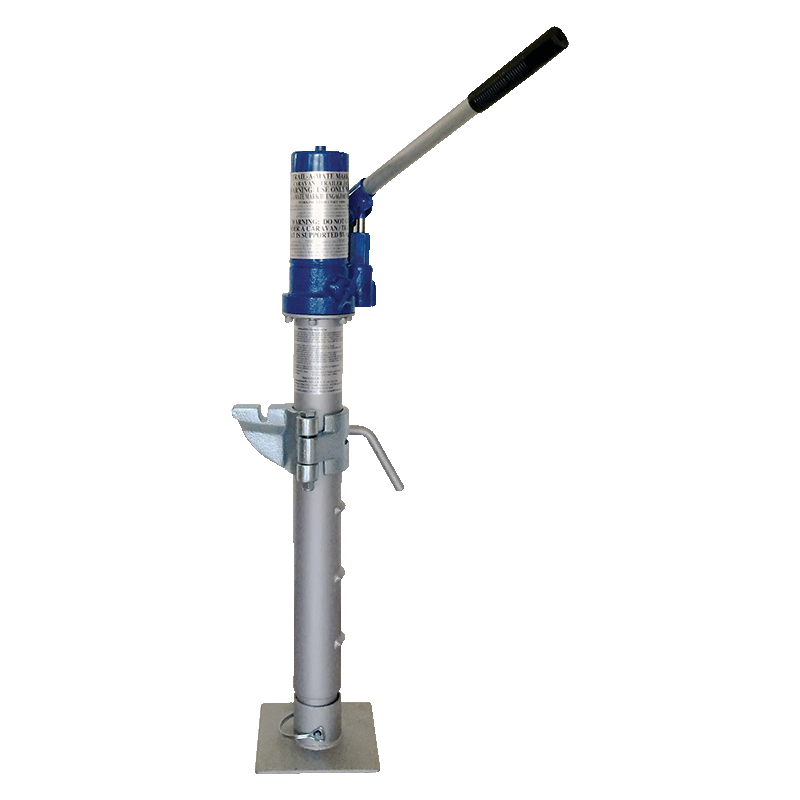

The TRAIL‑A‑MATE Mark II Hydraulic Jack is a heavy-duty lifting solution engineered for large caravans, trailers, boats, horse floats, motorhomes, food vans, and more. With a working load limit of 1,500 kg and suitable for vehicles with an Aggregate Trailer Mass (ATM) up to 3,500 kg, this jack offers robust and reliable performance. It meets the rigorous Australian/New Zealand safety standard AS/NZS 2693:2007, making it both efficient and secure.

Perfect for replacing worn jockey wheels or jacks, the Mark II is designed for easy use, durability, and versatility.

Key Features

High Load Capacity: 1,500 kg Working Load Limit (WLL); supports up to 3,500 kg ATM.

Hydraulic Operation: Effortless to operate—no heavy physical exertion required.

Safety Compliant: Fully adheres to AS/NZS 2693:2007 standards.

Compact & Multi-functional: Features a detachable flat base, enabling use as both a lifting jack and a stationary jack stand

Optional Conversion: With a 60 mm clamp (sold separately), it can serve as a jockey stand. Includes a 60 mm jacking clamp as standard

Height Range: Minimum height ~145 mm, maximum ~780 mm, providing a lifting range of approximately 380 mm

Shaft Diameter: 60 mm—does not fit standard 50 mm jockey wheel clamps. A 60 mm A‑Frame clamp must be purchased separately (SKU 450‑00089).

Specifications

• Working Load Limit (WLL): 1,500 kg
• Suitable for Aggregate Trailer Mass (ATM) up to 3,500 kg
• Minimum Height: approximately 145 mm
• Maximum Height: approximately 780 mm
• Lifting Range: approximately 380 mm
• Shaft Diameter: 60 mm (will not fit standard 50 mm jockey wheel clamps)
• Safety Standard: Complies with AS/NZS 2693:2007
• Base Type: Detachable flat base
• Clamp Included: 60 mm jacking clamp
• Optional Accessory: 60 mm A-Frame clamp (sold separately)

Frequently Asked Questions (FAQ)

1. Is the 60 mm clamp included or do I need to purchase it separately?
A 60 mm jacking clamp is included with the product; however, a 60 mm A‑Frame clamp (required if mounting on the caravan drawbar) must be purchased separately—standard 50 mm clamps are incompatible.

2. What is the height adjustment range for the jack?
The jack has a minimum height of approximately 145 mm, extends to a maximum of about 780 mm, providing a lifting range of roughly 380 mm.

3. Can this unit be used as both a jack and a stand?
Yes—thanks to its detachable flat base, the Trail‑A‑Mate Mark II functions as both a lifting jack and a stable jack stand for stationary support.

4. What types of trailers or situations is this jack suited for?
Its versatile design supports lifting caravans, trailers, boats, horse floats, food vans, and motorhomes. It's also trusted by the Australian Defence Force for levelling equipment systems
