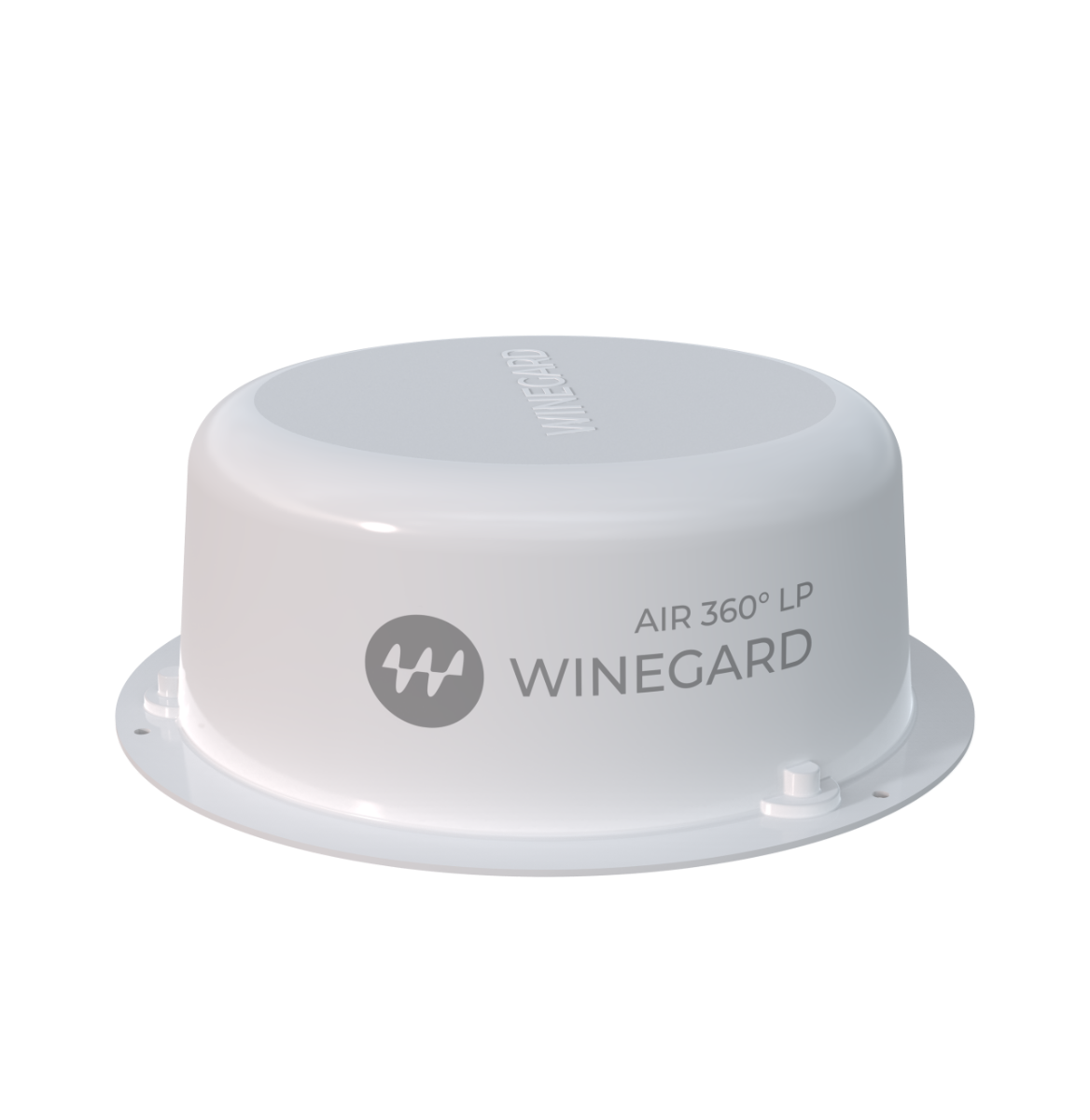

WINEGARD - AIR 360LP Compact Omnidirectional TV & FM Antenna | WHITE. CCA3LPW
WINEGARD - AIR 360LP Compact Omnidirectional TV & FM Antenna | WHITE. CCA3LPW
SKU
900-00090
In stock
$239.00
$179.10
Details
Give your caravan, motorhome or RV reliable TV and FM reception without bulky roof hardware, the Winegard AIR 360LP is a compact low-profile antenna made for easy touring. Set up at camp, switch on your TV or radio, and enjoy dependable reception without needing to crank, turn or manually aim the antenna.
Its slim dome design keeps your roof space cleaner and more usable, making it a great choice for modern RV setups where solar panels, air conditioners and vents all compete for space. With omnidirectional 360° reception, built-in 4G LTE filtering and 12V operation
Key Features:
Space-Saving Design: Compact footprint ideal for freeing up roof space for solar panels or other installations.
Omnidirectional Reception: Captures VHF (54–230 MHz), UHF (470–700 MHz), and FM (88–108 MHz) signals without adjustments.
Simple Operation: No more cranking or turning—just install and enjoy.
Durable and Lightweight: Low-profile dome design resists weather damage, with a diameter of 29.85 cm, height of 11.02 cm, and a weight of only 0.39 kg.
Specifications
-
Element Type: OMNIDIRECTIONAL (360°)
4G Filter: Yes (4G LTE Filter Type)
VHF: 54 to 230 MHz
UHF: 470 to 700 MHz
FM: 88 to 108 MHz
Amplifier Gain: 18 dB
Amplifier Noise: 1 dB
Impedance: 75 ohms
Power Supply: 12 VDC
Diameter: 29.85 cm
Height: 11.02 cm
Weight: 0.39 kg
Range: 75 km
Key Differneces to the HV Antenna
The Winegard AIR 360LP is a compact and convenient antenna, but its signal performance is not as strong as the Winegard H/V Wind Up Antenna.
If you travel to regional areas, weak signal zones, high mountain ranges or want the best chance of stronger TV reception, the Winegard H/V is the better choice.
FAQ
Q: Is the Winegard AIR 360LP stronger than the Winegard H/V Wind Up Antenna?
No. The AIR 360LP is smaller and more compact, but the Winegard H/V Wind Up Antenna generally offers stronger reception performance.
Q: How far will it pick up TV signal?
It can receive signals up to 75 km from the broadcast tower under ideal conditions. Terrain, buildings, trees and weather can affect reception.
Q: Does it need power to work?
Yes. It operates on 12V DC via the supplied wall plate/power supply. The green indicator light must be on for the antenna to function.
Q: What is the range difference between the Winegard AIR 360LP and the Winegard H/V Wind Up Antenna?
The Winegard AIR 360LP has a listed range of up to 75km, while the Winegard H/V Wind Up Antenna has a listed range of up to 144km. This means the H/V Wind Up Antenna is the stronger option for customers wanting better reception over longer distances.
Q: Why am I not getting channels after installation?
You must run a full channel scan through your TV menu after installation. Make sure your TV is set to “Antenna” or “Air”
Q: Can I use splitters between the antenna and power supply?
No. Installing splitters or couplers between the antenna and power supply can cause faults and prevent correct operation.
Q: How much roof clearance do I need?
It is recommended to allow approximately 46 cm clearance from the nearest roof obstruction (such as air conditioners, solar panels or roof racks) for best performance.
