It has an adjustable amplifier which provides up to 10dB for increased performance if needed.

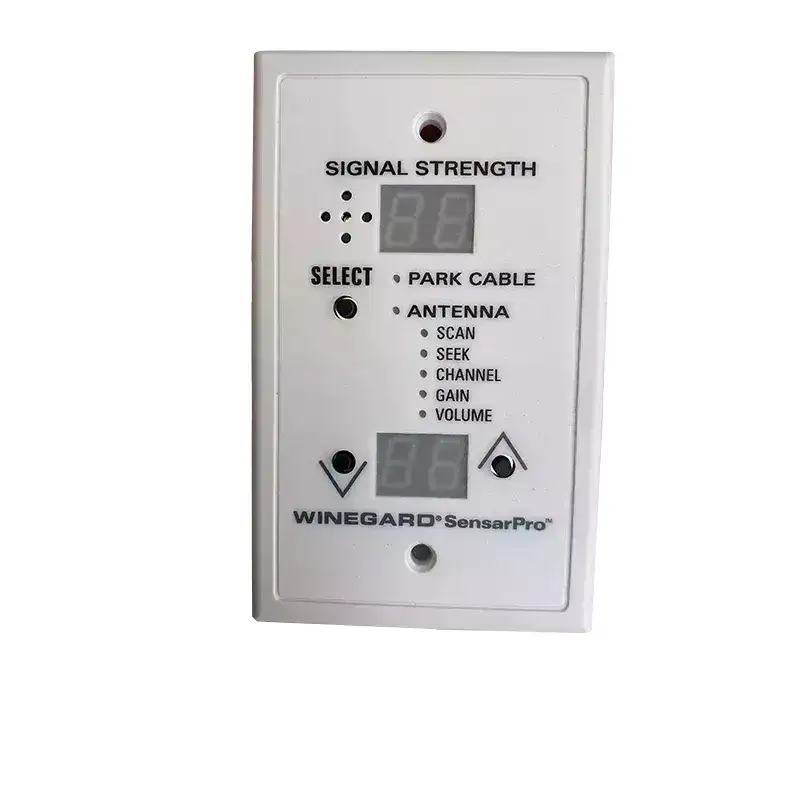

Designed, built and hand tested in the USA, the Sensar Pro allows you to find the highest signal strength and thus watch TV.

• Fast Scan, Seek and Channel Modes - Find peak signals before running a channel scan on your TV
• High-Grade Digital Tuner - Locate any channel your TV can receive. Blaock 3G and 4G signals for noise-free reception. Aim with precise 100-point scale vs 4-5 lighted bars.
• Adjustable Booster - Increase range with up to 10db of low noise gain. or lower the gain in close-range bars.
• Audio Feedback- great for when wall plate is out of sight or reach.

Dimensions: W x D x H - 70mm x 19mm x 114mm

Weight: 81.6gr

Cables/ Outputs included: Antenna IN, Cable IN, TV1 OUT and TV2 OUT

Frequently Asked Questions

Q: What does the Winegard Sensar Pro do?
The Sensar Pro is a signal strength meter and amplifier designed to help you locate the strongest possible TV signal. It works with all amplified Winegard Sensar antennas and improves signal quality by allowing fine-tuned positioning.

Q: How does this help me get better reception?
The Sensar Pro helps you precisely aim your antenna for the best signal using a 100-point signal strength display. It also includes a built-in adjustable amplifier to enhance weak signals or reduce gain if you're close to towers.

Q: How much can the signal be boosted?
The Sensar Pro provides up to 10dB of adjustable gain. You can increase it to help in low-signal areas or decrease it when you're close to a broadcast source to reduce distortion.

Q: What signal feedback options does it offer?
It provides both visual and audible signal feedback, which is especially useful if the Sensar Pro is installed out of your line of sight.

Q: What outputs and inputs are included?
The Sensar Pro includes:

• Antenna IN

• Cable IN

• TV1 OUT

• TV2 OUT

Q: Does this replace my existing antenna wall plate?
Yes, the Sensar Pro is designed to replace your existing Winegard wall plate and amplifier. It fits in the same location and adds more functionality.

Q: Do I need to re-scan my TV channels after using this?
Yes. Once you find the strongest signal using the Sensar Pro, you should run a channel scan on your TV to update available stations.

Q: Can I use this with non-Winegard antennas?
This unit is specifically designed for use with Winegard amplified antennas.
